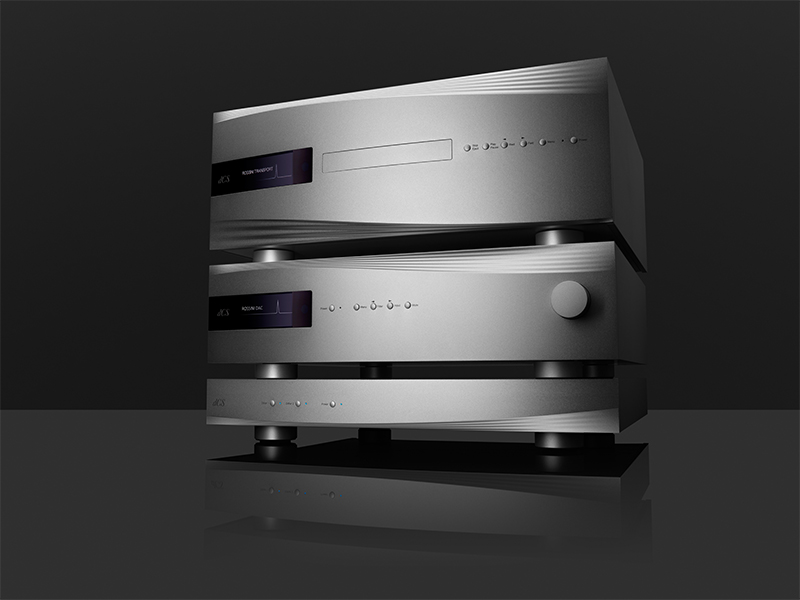

分體式 Rossini 系列的設計理念，是由一體式 Rossini Player 發展而成，承襲了所有數位串流功能外，更提昇了整體的音樂性。Rossini 系列運用了旗艦 Vivaldi 的核心技術、最新的 dCS 數位處理平台及 APEX Ring DAC 。內部使用的可編程晶片 (FPGA) 能夠優化訊號的處理方式，使得 Rossini 能夠不斷升級、與時俱進。

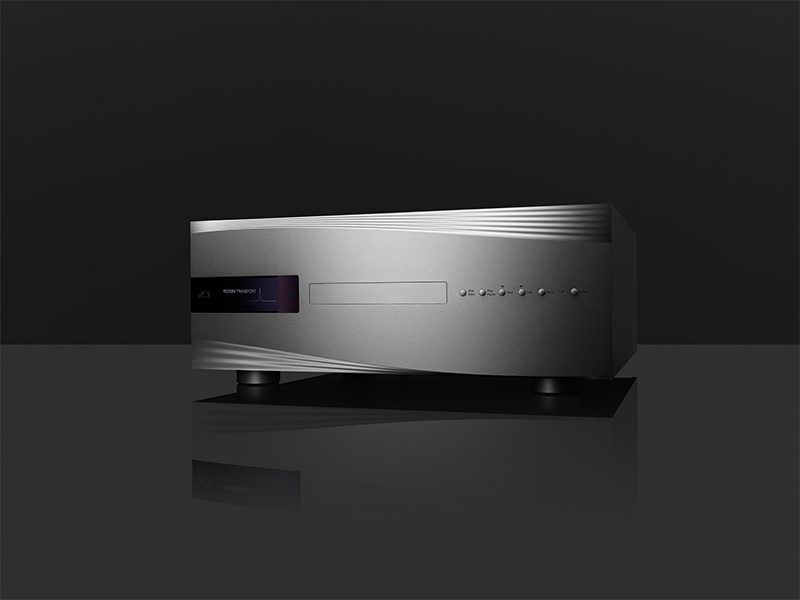

Rossini Transport 被設計為與 Rossini DAC 搭配使用，亦可搭配其他標準的 DAC 。Rossini 轉盤能夠使用其內部主時鐘系統，也可使用 DAC 當作系統的主時鐘，再配上 Rossini Clock 能夠使整套系統表現大幅提升。Rossini 系列也承襲了 Vivaldi 的 ‘auto clocking’ 結構能將時機誤差降至最低並自動鎖定不同頻率的音樂來源格式，大幅提昇整體音質表現。
顏色：黑/銀
| 種類 |
Upsampling CD/SACD Transport. |
| 機械承盤結構 |
Dual laser CD/SACD mechanism. |
| 尺寸 |
444mm (17.5”) long x 435mm (17.2”) deep x 178mm (7.0”) high. Allow extra depth for cable connectors.
Allow space for air flow around the unit. |
| 重量 |
20.6kg (45.3lbs). |

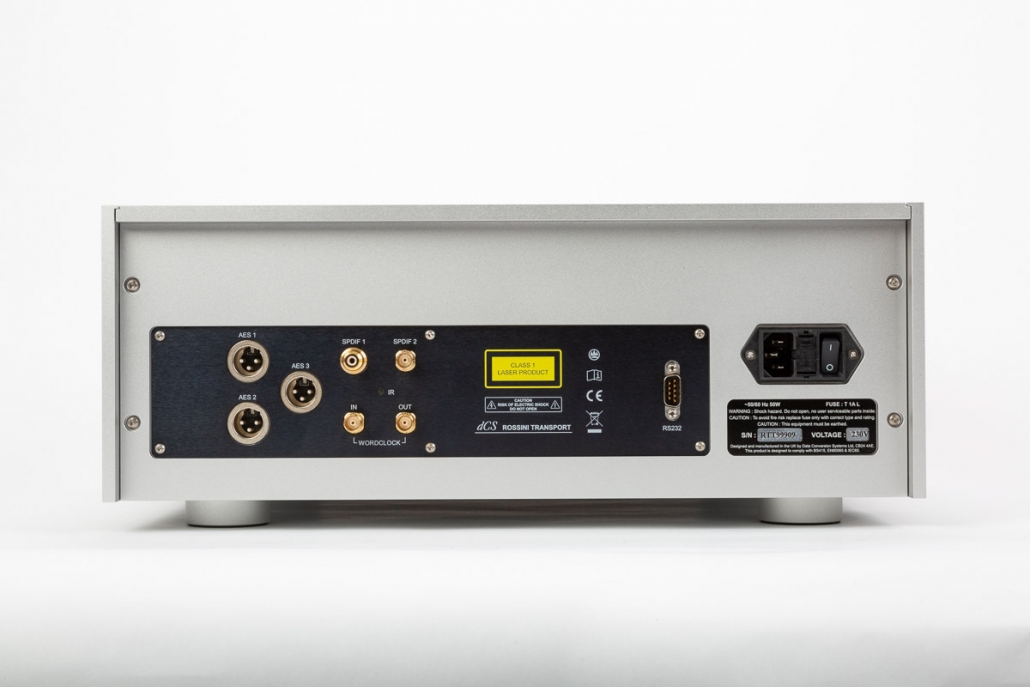

| 數位輸出 |
Dual AES interface on 2x 3-pin male XLR connectors (AES1+2).
While an SACD is playing, the interface outputs encrypted DSD data.
While a CD is playing, the Settings > Upsample Mode menu page sets the interface to output either encrypted
DSD data (1 bit at 2.822MS/s) or DXD data (24 bits at 352.8kS/s) or DSDx2 data (1 bit at 5.644MS/s).
AES interface on 3-pin male XLR connector (AES3), outputs 16/44.1 data, whether a CD or SACD is playing.
2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each outputs 16/44.1 data, whether a CD or
SACD is playing. |
| 時鐘輸入/出 |
Word Clock Output on 1x BNC connector. With the transport in Master mode, a TTL-compatible 44.1kHz
word clock derived from the internal crystal oscillator is available on this output.
Word Clock Input on 1x BNC connector, accepts standard word clock at 44.1, 88.2 or 176.4kHz.
Sensitive to TTL levels. Lock range is +/-300ppm. |
| 時鐘精度度 |
The calibration accuracy when shipped is +/-10ppm, (not temperature compensated). |
| 電源供應 |
Factory set to either 100, 115/120, 220 or 230/240V AC, 50/60Hz. |
| 消耗功率 |
16W typical / 50W maximum. Consumes less than 0.5W when powered down from the front panel. |
