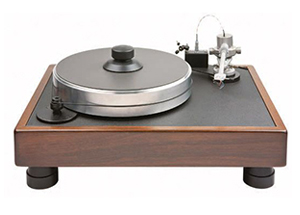

Turntable Features:
|
Anti-skate mechanism.
|
|
Anti-static mat.
|
|
2 inch Delrin feet with 3 ball bearing bottoms.
|
|
2 inch thick MDF walnut veneer bonded with 11 gauge and dampening fabric.
|
|
Inverted bearing - hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing and sitting on a PEEK thrust disc.
|
|
Counter weight standard 140 gm + 10 gm outrigger weight.
|
|
Left rear mounted 600 RPM Motor.
|
|
60 Hertz power supply generator providing a pure sign wave to feed the motor.
|
|
20 x 15 x 9 (top of the wire loop).
|
|
Tonearm:
|
Tapered arm tube of 6061 aluminum critically damped internally.
|
|
Bearing to Unipivot distance – 258MM
|
|
Unipivot design allowing easy freedom of motion with near zero friction.
|
|
Dropped counterweight for tracking force and azimuth adjustments plus lowering the center of gravity.
|
|
Solid aluminum headshell pressed onto the arm tube for a rigid mounting.
|
|
10.5 Unipivot tonearm with adjustable VTA (not on the fly).
|
|
Solid construction of the base assembly guarantees solid bass performance
|
|
Dimensions:
|
Footprint: 19 1/4" x 14 1/4"
|
|
Diameter of single foot: 21/4" D
|
|
Platter Height: 2"
|
|
Platter Weight: 20 pounds
|
|
Total Weight: 65 pounds
|
