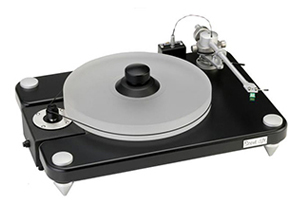

The Table:
|
1/8" thick MDF bonded to a 12 gauge steel plate.
|
|
Machined 1 3/8" thick 6061 aluminum platter.
|
|
Platter rotates on an oil bath bearing and fitted to shaft with a #2 Jacob’s Taper for a concentric rigidly mounted coupling.
|
|
The bearing has a PEEK thrust disc and machined graphite impregnated brass bushings using a Thompson Engineering 60 Rockwell case hardened shaft.
|
|
600 RPM AC synchronous motor is contained in a separate steel housing and drives the platter with smooth, quiet operation.
|
|
Includes a platter and record damping mat.
|
|
The Arm:
|
New 9” JMW Scout Tonearm.
|
|
No friction unipivot bearing mounted on a solid stainless steel shaft.
|
|
VTA adjustable arm mount.
|
|
Removable arm-wands allows you to change cartridges in less than 30 seconds.
|
|
Precision adjustable counter weight allows you to get the most out of every cartridge you mount using it’s azimuth and tracking force adjustments.
|
|
Adjustable Anti-skate option.
|
|
Dimensions
|
19" x 13" x 4
|
