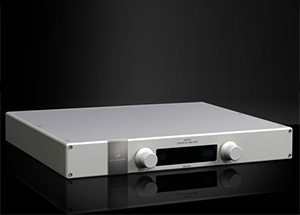

FRONT PANEL CONTROLS
|
Volume Control
|
|
Selector Input Switch
|
|
IR Receiver for Remote
|
|
Display of playback level
|
|
Display of input selected
|
|
Power led
|
|
BACK PANEL CONTROLS
|
On/Off switch
|
|
Power cord socket 3 lugs
|
|
Inputs
|
|
Outputs
|
|
INPUTS
|
5 pairs of RCA inputs (right and left
|
|
Input impedance: 50 kOhms
|
|
Maximum input level (unbalanced):3.6 V RMS
|
|
OUTPUTS
|
2 pairs of output Speaker connectors (right and left)
|
|
POWER SUPPLY
|
3 toroidal transformers
|
|
3 separated power supply
|
|
Power cord socket (3 lugs)
|
|
Mains fuse (5A slow-blow)
|
|
GROUNDING
|
Separated ground and earth signal
|
|
Connection between earth and ground to cancel all ground loops
|
|
SAFETY FEATURES
|
Automatic switching to MUTING if the AC line drops or is interrupted
|
|
POWER
|
Power RMS (Goldmund FPP Standard):150W on 8 Ohms
|
|
Peak Power/Maximum voltage:225W on 8 Ohms
|
|
Nominal line voltage:110 or 230 V
|
|
Input voltage range:+/- 10 %.
|
|
Maximum mains consumption at 234V:600 W
|
|
Power consumption in standby:27 W
|
|
CIRCUIT SPEED
|
Rise time:< 800 ns.
|
|
FREQUENCY RESPONSE These values for any level to maximum output level
|
+/- 0.15 dB, 10 - 20 kHz
|
|
+/- 0.6 dB, 10 – 100 kHz
|
|
+/- 1.2 dB, 10 – 200 kHz
|
|
DISTORTION With 1 Vrms output level, 80 kHz measurement bandwidth, 600 ohms termination impedance
|
THD unbalanced in to balanced out 0.01 % flat with frequency
|
|
IMD unbalanced in to balanced out 0.01 %
|
|
NOISE
|
Signal-to noise ratio on line input:> 80 dB (0.01 Hz - 10 Mhz)
|
|
Weighted ASA A:> 90 dB
|
|
OPERATING TEMPERATURE
|
Room temperature:-30 to +40 degrees Celsius ( -22 to +104 degrees Fahrenheit)
|
|
Internal temperature:+45 to +65 degrees Celsius ( +113 to +149 degrees Fahrenheit)
|
|
SIZE AND WEIGHT
|
Amplifier:350 mm (13.77") W x 276.5 mm (10.88") D x 60 mm (2.36") H
|
|
Packing Box:440 mm (17.32") W x 370 mm (14.56") D x 120 mm (4.72") H
|
|
Total weight:9 Kg (19.84 lb)
|
|
Total weight with the box:10 Kg (22lb)
|
