Bergmann

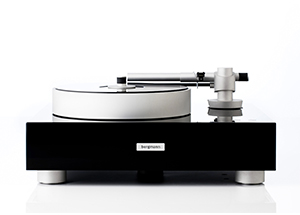

Sleipner

The reference model. The turntable with the bearingless floating platter. The bearing is the "heart" in all turntable constructions - and the Achilles. Achilles because in a traditional bearing, the weight of the platter causes enormous pressure on the bearing - and hereby generate mechanical noise. The "heart" of Sleipner is both supported and centred by air. Simply the 9,2kg. platter is floating: No mechanical contact - no bearing noise! Sleipner is available with vacuum hold down.

SPECIFICATIONS

Turntable	Airbearing design.
	Vacuum hold down or clamp.
	High precision digital controlled DC motor. Beltdriven.
Plinth	Outer layer in 12mm Polyvinyl. Painted and handpolished.
Plinth	Inner part is a 6 layer sandwich construction, in different materials for optimum resonance control:.
Platter/Bearing	Aluminium platter supported and centred by air.
	Bearing/airsupply creates a thin airfilm, both vertical and horizontal, between platter and bearing - no mechanical noise - no friction.
	Platter weight: 9,2kg.
Record Mat	21mm, 3 layer construction:
	2 layers of polycarbonate.
	1 layer of acryllic.
Feet	Adjustable feet. Aluminium/ceraball construction.
Dimensions	440 x 495 x 230 (D x W x H).
Total weight	39.8 kg.
Tonearm	Linear tracking airbearing Tonearm.
	Carbon armtube and headshell, moulded in one piece, for optimum stiffness.
	Armtube damped inside.
	Counter weight decoupled from armtube
	Adjustments: VTA, overhang, leveling.
Wire:	Internal wire in pure silver.
Clips:	Silver plated copper.
Connectors:	ACR, XLR, DIN.
Effective mass:	11 gr.
Motorcontrol	High precision digital controlled DC motor, with hallsensor and encoder.
	Supported by a very stable and oversized power supply.
	33 & 45rpm. Finetuning by microprocessor controlled pushbuttons.
Dimensions	440 x 99 x 105 (D x W x H)
Weight	3.6 kg.
Airsupply	Lowpressure design.
	Silent, clean, dry and smooth airflow.
	Easy accessible dust filter, for easy cleaning and replacement.
Dimensions	440 x 226 x 232 (D x W x H)
Weight	17.2 kg.
