Bergmann

Sindre

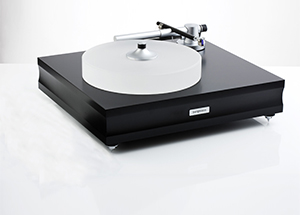

Sindre is a fully airbearing turntable and lineair tracking airbearing tonearm combination. The platter - centred by a spindel - floats on an air film. Sindre turntable and tonearm is extremely simple to adjust and operate. The airsupply is equiped with condence- and dustfilters, and reservoirs to obtain dry, clean and smooth airflow. Further more the air supply is so noiseless, that it can be placed in the listening room.

SPECIFICATIONS

Turntable	Airbearing design.
	Record tighten by clamp.
	DC motor. Beltdriven.
Plinth:	4 layers of solid high density composite material.
Platter/Bearing:	Acrylic platter and the aluminum subplatter floats on air.
	Centred by steel spindel/hardweared low friction polymer bearing.
	Platter weight: 4kg.
Subplatter:	Aluminium, weight: 3,2kg.
Feet:	3 adjustable spikes.
Dimensions:	440 x 495 x 210 (D x W x H)
Total weight:	23 kg.
Tonearm	Linear tracking airbearing tonearm. Hard aluminium aloy/carbon.
	Armtube damped inside.
	Counterweight decoupled from armtube.
	Adjustments: VTA, overhang, leveling.
Wire:	High quality copper litz.
Clips:	Gold plated copper.
Connectors:	RCA, XLR, DIN.
Effective mass:	10 gr.
Powersupply	Stable and powerful seperate supply.
	Capacity: 44.000 microfarad.
	33 & 45 rpm. Speed finetuning.
Dimensions:	363 x 210 x 93 (D x W x H)
Weight:	3.6 kg
Airsupply	Silent, clean, dry and smooth airflow.
Airsupply	Replaceable dust filter.
Dimensions:	415 x 210 x 220 (D x W x H)
Weight:	8.4 kg.
