Aesthetix

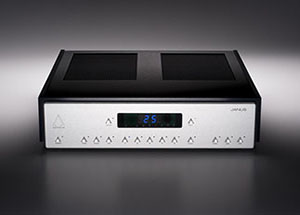

Janus

Janus is a full-function all-tube preamplifier with six line level inputs and one phono input. Janus represents the key features of Rhea phono stage and Calypso linestage combined into a single chassis. All tube amplification and output, a fully balanced linestage, discrete switched resistor volume control, versatile single-ended and balanced inputs and outputs, and dual-mono audio boards are all part of Janus. The full function remote controls all preamp and phono functions, including gain, loading, absolute phase and the internal demagnetizer. True to its Saturn Series heritage, the build and sound quality of Janus have won it global praise, including 2010 and 2011 TAS Editor's Choice Awards.

SPECIFICATIONS

Inputs	1 phono RCA (SE), 5 line RCA or XLR (balanced), plus 1 tape, RCA or XLR
Outputs	2 RCA (SE) and XLR (balanced), 1 tape RCA
Phono gain settings	8 total; 75, 68, 62, 56, 50, 44, 38 dB, and off
Phono load settings	9 total; 47 K ohms, 10K, 5K, 2.5K, 1K, 500 ohms, 250, 125, and 75 ohms
Line level gain	23 dB single ended (SE), in/out, and 29 dB balanced/out
Volume control	switched resistor network volume control with 88 1 dB steps
Front panel controls	+- 0.25 dB, 20 Hz - 20 Khz
Signal to noise	measured at 70 dB minimum A-weighted (ref 1 mv input, 75 dB gain setting)
Line input impedence	40 k ohms SE, 80 k ohms balanced
Maximum line input	3.5 volts SE, 7.0 volts RMS balanced
Output impedence	1K ohms SE, 600 ohms balanced
Recommended load	10K ohms or greater (SE), 20K ohms or greater (Balanced)
Tubes, each channel	phono section: V1 & V2 (12AX7-factory graded low noise), V3 (12AX7), V4 (6922/6DJ8); line section: V1 (12AX7 or equivalent), V2 (6922/6DJ8)
Power consumption	20 watts standby, 120 watts active
Physical dimensions	4 3/8" high, 17 7/8" wide, 18" deep including jacks
Shipping weight	40 lbs.
