Aesthetix

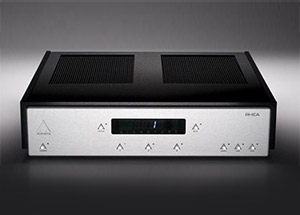

RHEA

Rhea is an all-tube phono stage, suitable for moving coil and moving magnet cartridges. It offers high maximum gain at 75 dB, making it ideal for low output cartridges. Rhea broke new ground as the first phono stage with 3 phono inputs, the first with gain and loading settings stored in memory for every input, and the first with full remote control adjustability. Dual-mono audio boards provide superb channel separation and soundstaging. A cartridge demagnetizer is a built-in convenience that can also be operated by remote control. The all-aluminum chassis is designed for rigidity and acoustic inertness, the brushed anodized panels are beautiful too. Rhea has enjoyed worldwide acclaim for its sound quality, build quality, flexibility and ease of use.

SPECIFICATIONS

Inputs	3 discrete phono inputs with RCA (SE)
Gain settings (selectable for each input)	8 total; 75, 68, 62, 56, 50, 44, 38 dB, and off
Load settings (selectable for each input)	9 total: 47 K ohms, 10K, 5K, 2.5K, 1K, 500 ohms, 250, 125, and 75 ohms
Outputs	2 RCA (SE) and 2 XLR (balanced)
Output impedence	1K ohms RCA (SE), 600 ohms XLR (balanced)
Front panel controls	phono input, mute, gain, loading, demagnetizer, and standby
Frequency response	phono input, mute, gain, loading, demagnetizer, and standby
Frequency response	+- 0.25 dB, 20 Hz - 20 KHz
Signal to noise	measured at 70 dB minimum A-weighted (ref 1 mv input, 75 dB gain setting)
Recommended load	10 k ohms or greater
Tubes (each channel)	V1 & V2 (12AX7LP-factory graded low noise), V3 & V4 (12AX7 or equivalent) and V5 (6922)
Power consumption	20 watts standby, 100 watts active
Physical dimensions	4 3/8" high, 17 7/8" wide, 18" deep including jacks
Shipping weight	40 lbs.
