Sonus Faber

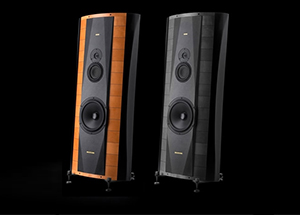

Elipsa
innovation becomes elliptical.

Elipsa was created from a precise desire: to transfer the technological innovation and musical performance achieved by loudspeakers from the Homage collection,
especially from the Stradivari, to a new project belonging to the Cremona line, thus making them available to a wider public.
The elliptical design of the cabinet enables the loudspeaker to obtain acoustic scenery with extraordinary breadth and depth, where the performers take on body and three-dimensional consistency.
The careful choice of the drivers, especially in the mid-range, developed in collaboration with our Scandinavian partners exclusively for Sonus faber,
equipped with a wood fibre cone – is united with a network of crossovers that once again reflects our conviction relative to the "physiological" cut-off frequencies,
capable of determining a convincing sound that does not create fatigue for the listener. In a word, a "natural" sound.
SPECIFICATIONS

SYSTEM

3 way floorstanding vented box loudspeaker.

CABINET

Elliptical shape design, combination of sandwich construction obtained using hand selected wood layer and solid maple, quality graded and oriented for carefully optimized resonances control. Sub-structural ribs are strategically placed for absolute rejection of spurious vibration and standing waves control.

TWEETER

25 mm ultra dynamic ring radiator-driver.

MIDRANGE

150 mm cone driver with Symmetric Drive Motor System and selected black wood fiber cone, high resolution, treated for break-up control. Dynamic linear suspension. Designed synergistically with its vented acoustic chamber. Sonus faber exclusive.

WOOFER

260 mm lightweight Aluminium/Magnesium alloy cone driver. Ultra dynamic performance and linearity. Special coaxial anticompressors is used, designed to remove cavity resonance and distortions.

CROSS-OVER

Non-resonant second order design, optimized phase characteristics for optimal space/time performance, cross-over points 250 Hz - 2.300 Hz.

FREQUENCY RESPONSE

35 Hz - 30.000 Hz, tuning ports included.

SENSITIVITY

91 dB SPL (2,83 V/1m).

NOMINAL IMPEDANCE

4 ohm.

POWER HANDLING

50W - 300W, without clipping.

FINISH

Natural maple or light graphite multicoated with medium gloss ecologically sensitive lacquer.

DIMENSIONS

1250 x 550 x 420 mm (HxWxD).



WEIGHT

97 Kg per pair - net weight

113,5 Kg per pair- shipping weight.
