Miyajima-lab

Kansui

I repeated an experiment to produce the cartridge which is better than Shilabe.
I changed some parts and a manufacturing process.

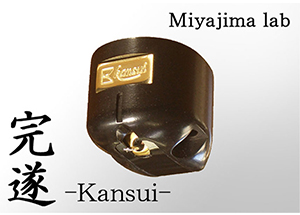

And, I completed cartridge "Kansui".
Kansui did not exceed all of Shilabe, but I felt splendor of Kansui while I listened to many records.
Balance, stillness, etc...
When you listen to a magnificent orchestra, I think that you understand it.

SPECIFICATIONS

Maker	Miyajima-Laboratory
Product name	Stereo cartridge -Kansui-
Impedance	About 16 ohms (About 0.23mV output)
Frequency range (-3dB)	20 Hz to 32 kHz
Tracking force (Best)	2.0g - 2.5g (recommended 2.25g) diamond needle
Stylus Shape	Shibata
Compliance (100Hz)	around 7×10-6cm/dyne
Appropriate temperature	20-30 Celsius (most suitable 25 C) 68-86 Fahrenheit (most suitable 77 F)
Weight	about 10.4g
Body	African Blackwood
