Dynavector

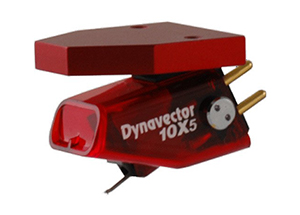

10X5

The Dynavector 10X series High Output Moving Coil cartridge debuted in 1978 winning the prestigious Design and Engineering Award at the Chicago CES in both 1978 and 1981. The 10X series cartridges are also widely accepted at the benchmark in High Output moving coil cartridge at this price point and beyond.
With the introduction of the new 10X5 High Output moving coil there is no doubt Dynavector will retain this enviable position and again set the standard for high output moving coil cartridges.

SPECIFICTIONS
Type	High output moving coil cartridge with flux damper and softened magnetism
Output Voltage	2.5mV (at 1KHz, 5cm/sec.)
Channel Separation	25 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 2dB)
Compliance	12 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2 grams
DC resistance	R=150 ohms
Recommended load impedance	>1K ohms
Cantilever	6mm length aluminium pipe
Stylus	Elliptical
Weight	7.3 grams
