Dynavector

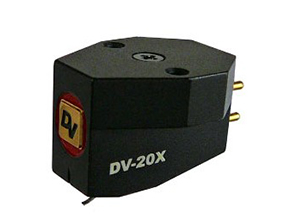

20X (H)(L)

For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Notably high output models that are designed to work with MM inputs negating the necessity for equipment change or the use of setup devices required for low output cartridges. The outstanding performance of the Dynavector high output moving coil cartridges can be attributed to the exclusively Dynavector designed coil winding machine capable of utilizing extremely fine coil wire providing a high output to mass ratio.

SPECIFICTIONS
Type	High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage	2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation	25 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 2dB)
Compliance	12 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2grams
DC resistance	150 ohms / 5 ohms
Recommended load resistance	> 1,000 ohms / > 30 ohms
Cantilever	6mm length, hard aluminium pipe
Stylus	Micro Ridge Nude diamond
Weight	9.2 grams
