Dynavector

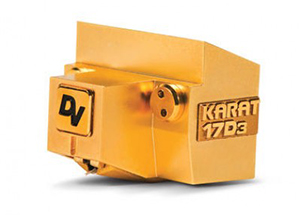

17D3

The new 17D3 Karat Diamond is the first cartridge built using 'dispersion' theory. Its Micro-Ridge stylus and very short (1.7mm) solid diamond cantilever give a huge reduction in 'frequency dispersion', unmatched dynamics and a high frequency extension all the way up to 100kHz. The latest patented magnet circuit design increases the output to 0.3mV with crystal clear mid-range and treble even during the largest symphonic crescendos.

SPECIFICTIONS
Type	Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage	0.3mV (at 1KHz, 5cm/sec.)
Channel Separation	25 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 1dB), 20 - 100,000Hz
Compliance	15 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2grams
DC resistance	R=32 ohms
Recommended load resistance	> 100 ohms
Cantilever	1.7mm length, 0.25dia solid diamond
Stylus	Micro-Ridge
Weight	5.8 grams
