Dynavector

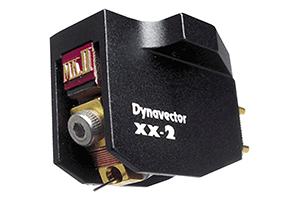

DV XX-2 MKII

DV XX-2 MKII retains the benefit of the flux damper but features the Alinco-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 MKII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernable improvement in sound quality.

SPECIFICTIONS
Type	Low output moving coil cartridge with Alnico magnet and Flux damper
Output Voltage	0.28mV (at 1KHz, 5cm/sec.)
Channel Separation	30 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 1dB)
Compliance	10 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2 grams
Impedance	R=6 ohms
Recommended load resistance	> 30 ohms
Cantilever	6mm length 0.3 mm dia. solid boron
Stylus	PF Line contact shape, stylus radius: 7 x 30 micron
Weight	8.9 grams
