Dynavector

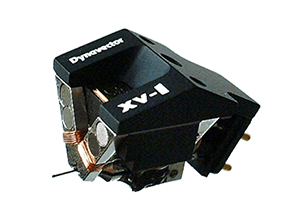

DRT XV-1s

The original XV-1 cartridge was designed to take the reproduction of analogue recording to new heights. The XV-1 achieved a standard of performance that was clearly in a league of its own. Dynavector have always remained indifferent to the endless digital formats that proport to be the next breakthrough in music reproduction, safe in the knowledge that the vast heritage of music recorded on vinyl can easily equal, if not clearly out perform these new formats.

SPECIFICTIONS
Type	Low output moving coil cartridge with multi Alnico magnets and the Flux damper
Output Voltage	0.3mV (at 1KHz, 5cm/sec.)
Channel Separation	30 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 1dB)
Compliance	10 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2 grams
Impedance	R=6 ohms, L=18 micro Henry
Recommended load resistance	> 30 ohms
Cantilever	6mm length 0.3 mm dia. solid boron
Stylus tip	PF Line contact shape, stylus radius: 7 x 30 micron
Weight	12.6 grams
