Dynavector

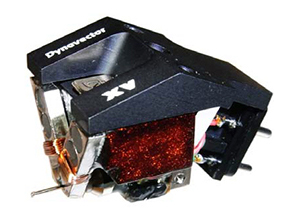

XV-1t

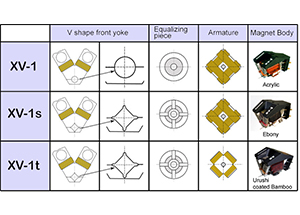

In 1999 Dynavector released the revolutionary DRT XV-1 stereo cartridge that pioneered the unique topology that included 8 Alnico magnets, magnetically stable front yokes, square shaped front armature within the rather spectacular deep "v" shaped front elevation. Combined with Dynavector's patented "Flux Damping" this cartridge quickly became the worldwide benchmark for music lovers and the audio press alike.

SPECIFICTIONS
Type	Low output moving coil cartridge with multi Alnico magnets and the Flux damper
Output Voltage	0.35mV (at 1KHz, 5cm/sec.)
Channel Separation	30 dB (at 1KHz)
Channel balance	1.0 dB (at 1KHz)
Frequency response	20 - 20,000Hz (± 1dB)
Compliance	10 x 10^-6 cm/dyn
Tracking force	1.8 - 2.2 grams
Impedance	R=24 ohms
Recommended load resistance	> 75 ohms
Cantilever	6mm length 0.3 mm dia. solid boron with a special armaturer
Stylus tip	PF Line contact shape, stylus radius: 7 x 30 micron
Weight	12.0 grams
